F55/F56 NBT 2014-2017

Wireless Carplay Android Auto Mirroring interface

F55/F56 NBT 2014-2017
F55/F56 NBT 2014-2017
F55/F56 NBT 2014-2017
F55/F56 NBT 2014-2017
F55/F56 NBT 2014-2017
Euro 309.00 *Prijzen zijn inclusief btw
ArtikelcodeMINI-NBT
CarPlay (wireless), Android Auto (wireless) interface MINI with NBT system

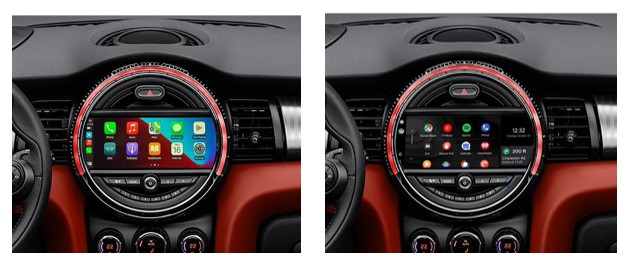

Use Apple Carplay or Android Auto on the original display of your MINI. The interface is easy to operate using voice control or steering wheel and radio buttons.

Integrate the latest mobile technology while retaining your original screen and all existing functions. This interface gives you access to Google and Waze navigation, Spotify, internet radio, Flitsmeister and other (music) apps such as CarPlay and Android Auto. With this interface you will never have outdated navigation again. You can also project the image from your phone onto the screen of the car (mirroring). All music is at your fingertips and you can keep your attention completely on the road!




Advantages
  • Direct available from stock
  • No software update required
  • No cable adjustments required
  • Camera function is retained
  • Uses original microphone
  • No need to connect a wire to AUX
  • Voice-control


Functions

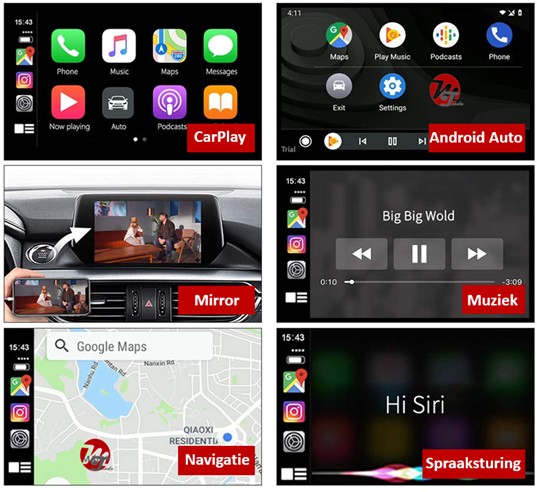

  • Apple Carplay (wireless), Android Auto (wireless) and Mirroring
  • Supports PDC (Parc Distance Control) and FPG (Flexible Parking Guidelines)
  • Compatible with PAL and NTSC cameras
  • Operation using touchscreen, radio- and steering wheel buttons
  • Suitable for connecting an after market front- and/or rear camera

Remarks
  • You have to use radio apps instead of original radio (radio keeps working however)


Compatibility

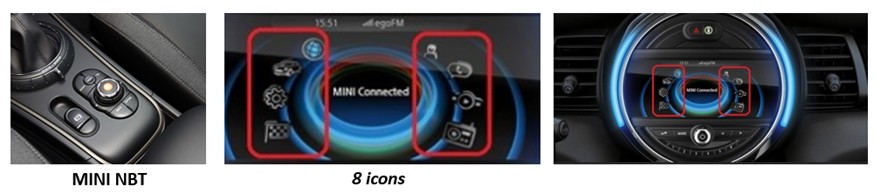

All MINI with this menu structure and iDrive-button.



General instructions

Specific instructions

Installation manuals
In case there is not enough space for the big black connector place the interface on top of the glovebox (remove sidepanel and glovebox)

Installation video
MINI NBT (with many thanks to the flying dutchman)

Watch this video when your air vents are similar to this picture,

Watch this video if you have the big radio and there is no space for the interface in front of it.

Remark
The manufacturer of this item and the administrator of this site are not responsible for damage to persons or property caused by improper use or in violation of the law.

Returns
By ordering of this product you agree with our Return Policy

Buyers outside the European Union
Please write your VAT-address in the field "Opmerkingen" (Remarks) on ordening. This fastens the clearance process.
You pay VAT to the clearance department of your country.






3 in 1 interfaceCarplay en Android Auto en Mirroring
  • 1x input voor CVBS achteruitrijcamera of 360 graden panoramisch beeld (automatische trigger)
  • 1x input voor CVBS frontcamera (trigger op versnelling naar Drive)
  • 1x input voor VGA 360 panoramisch beeld (specifiek model)
  • 1x USB-poort voor afspelen MP3 en MP4 720p/1080p HD lossless multimedia playback
  • 1x LVDS-poort voor origineel beeldscherm
  • 1x 3.5mm jack-plug voor AUX-IN USB NO LOSS audio input
  • 1x SD-poort voor extra geheugencapaciteit

Kabellengten
  • 3.5mm AUX-kabel (100 cm)
  • LVDS-videokabel (70-100 cm)
  • USB-kabel (70 cm)

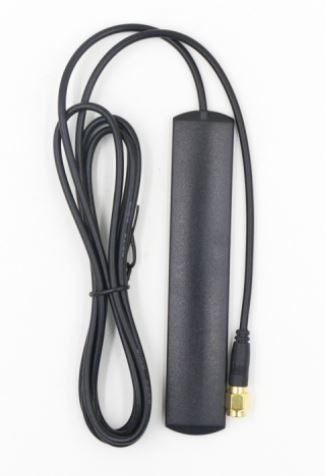

  • Antenne-kabel (90 cm)
  • Interface-aansluitkabel (90 cm)
De kabels zijn net lang genoeg om de interface te kunnen plaatsen. De optioneel bij te bestellen USB-verlengkabel geeft meer speling bij de inbouw.
