JAGUAR XF 2015-2019

Wireless Carplay Android Auto Mirroring interface

JAGUAR XF 2015-2019
JAGUAR XF 2015-2019
JAGUAR XF 2015-2019
JAGUAR XF 2015-2019
JAGUAR XF 2015-2019
JAGUAR XF 2015-2019
JAGUAR XF 2015-2019
JAGUAR XF 2015-2019
JAGUAR XF 2015-2019
Euro 349.00 *Prijzen zijn inclusief btw *Prijzen zijn inclusief btw
ArtikelcodeXF HK
CarPlay (wireless), Android Auto (wireless) & Mirroring interface JAGUAR XF 2015-2019

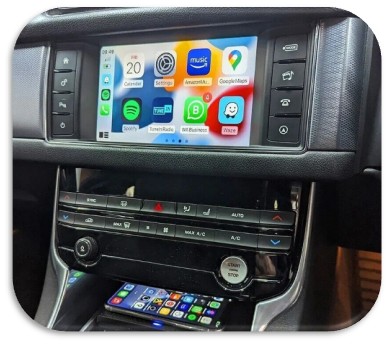

Use Apple Carplay or Android Auto on the original display of your JAGUAR. The interface is easy to operate using voice control or steering wheel and radio buttons.

Integrate the latest mobile technology while retaining your original screen and all existing functions. This interface gives you access to Google and Waze navigation, Spotify, internet radio, Flitsmeister and other (music) apps such as CarPlay and Android Auto. With this interface you will never have outdated navigation again. You can also project the image from your phone onto the screen of the car (mirroring). All music is at your fingertips and you can keep your attention completely on the road!

  • Direct available from stock
  • No software update required
  • No cable adjustments required
  • Camera function is retained
  • Uses original microphone
  • No need to connect a wire to AUX
  • Voice-control

  • Apple Carplay (wireless), Android Auto (wireless) and Mirroring
  • Supports PDC (Parc Distance Control) and FPG (Flexible Parking Guidelines)
  • Compatible with PAL and NTSC cameras
  • Operation using touchscreen, radio- and steering wheel buttons
  • Suitable for connecting an after market front- and/or rear camera

You have to use radio apps instead of original radio (radio keeps working however)

Fits Jaguar XF with Harman Kardon systeem and 8 of 10,25 inch screen (Harman Kardon has menustructure with coloured outlined windows).

To be on the safe side, you can first check the backside of the radio. The 8 inch screen should have the square black connector (picture left ) and the 10,25 inch screen should have the rectangular black connector (picture right).
General instructions

Specific instructions

Installation manual

Installation video
Remove climate control panel

The manufacturer of this item and the administrator of this site are not responsible for damage to persons or property caused by improper use or in violation of the law.

By ordering of this product you agree with our Return Policy

Buyers outside the European Union
Please write your VAT-address in the field "Opmerkingen" (Remarks) on ordening. This fastens the clearance process.
You pay VAT to the clearance department of your country.

3 in 1 interfaceCarplay en Android Auto en Mirroring
  • 1x input voor CVBS achteruitrijcamera of 360 graden panoramisch beeld (automatische trigger)
  • 1x input voor CVBS frontcamera (trigger op versnelling naar Drive)
  • 1x input voor VGA 360 panoramisch beeld (specifiek model)
  • 1x USB-poort voor afspelen MP3 en MP4 720p/1080p HD lossless multimedia playback
  • 1x USB-aansluiting voor telefoon

  • LVDS-videokabel (70-100 cm)
  • USB-kabel (70 cm)
  • Interface-aansluitkabel (100 cm)
De kabels zijn net lang genoeg om de interface te kunnen plaatsen. De optioneel bij te bestellen USB-verlengkabel geeft meer speling bij de inbouw.
